- SE300 Whip Kit Assembly 4 steps
In Progress
This guide is currently being written. Reload periodically to see the latest changes.
Quiz
0
-
-
First, click here to read safety information . This safety information may be updated at anytime so occasionally check for updates.
-
NOTE: This guide is intended to be followed online in order to fully utilize the links and documentation found within.
-
Open and inspect the contents of your SE300 whip kit to ensure you have all the parts listed on the BOM.
-
Attached to this guide is a PDF diagram of the whip wiring. Keep this handy, as we'll be referencing this throughout this guide.
-
-
-

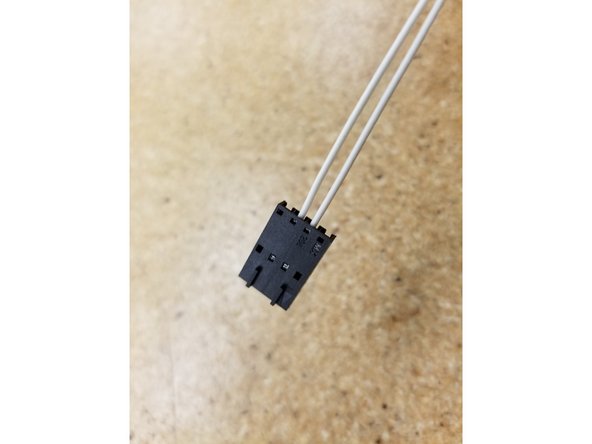

Begin inserting the wires into the black SL 10 position housing.
-
Be sure the small tab on the metal crimp terminal is facing the same direction as the square holes in the connector. If inserted properly, you should hear and feel a satisfying click as the tab seats. Give the wire a gently tug to make sure it's seated properly.
-
Repeat for the remainder of the wires, using the PDF from earlier as a guide.
-
-
-
Pass the wires through one of the shorter lengths of mesh loom material.
-
Tightly zip tie the bundle to hold everything in place.
-
Run everything through the wider cable boot, covering the zip tie and connector.
-
-
-
Insert wisdom here.
-
