  1. This shows the intended location for the Raspberry Pi to be installed.
    • This shows the intended location for the Raspberry Pi to be installed.

    • If you need additional board supports, you can purchase them here: Edge Support

  2. Install the four plastic mounting posts at the locations shown in the first image. Leave them slightly loose so they can be turned easily. Install the Pi into the cut-outs at the top of each mounting post. The posts grip the sides of the Pi at the USB end and the corners of the Pi at the other end of the board. Attach the Rambo's USB cable to the Rambo and the USB connection on the Pi as indicated.
    • Install the four plastic mounting posts at the locations shown in the first image. Leave them slightly loose so they can be turned easily.

    • Install the Pi into the cut-outs at the top of each mounting post. The posts grip the sides of the Pi at the USB end and the corners of the Pi at the other end of the board.

    • Attach the Rambo's USB cable to the Rambo and the USB connection on the Pi as indicated.

  3. Install a custom wire whip for power between the RAMBo and the Raspberry Pi. On the RAMBo this will connect to the 5v AUX OUT. Pay attention to polarity.
    • Install a custom wire whip for power between the RAMBo and the Raspberry Pi.

    • On the RAMBo this will connect to the 5v AUX OUT. Pay attention to polarity.

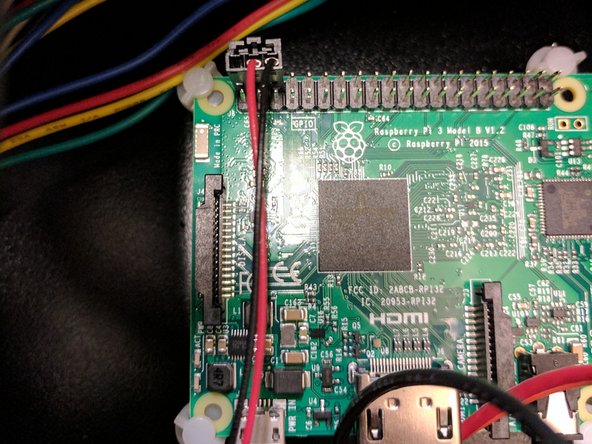

    • On the Raspberry Pi this will connect to pins 4 and 6 (see picture). Pay attention to polarity.

Finish Line

2 other people completed this guide.
