  1. Download the SeeMeCNC generated factory file.  The Simplify3D factory file saves the machine, slice settings, and STL all in one file.
    • Download the SeeMeCNC generated factory file. The Simplify3D factory file saves the machine, slice settings, and STL all in one file.

    • Click this link to download the factory file https://github.com/seemecnc/slicing-prof...

    • In the SeeMeCNC github file repository, right clicking (Windows) on the file gives options to save the file.

  2. In Simplify3D, open the factory file.  (Top left select  File > Open
    • In Simplify3D, open the factory file. (Top left select File > Open

    • Select "prepare to print" (bottom left).

    • Save the gcode (bottom left) and send to the printer.

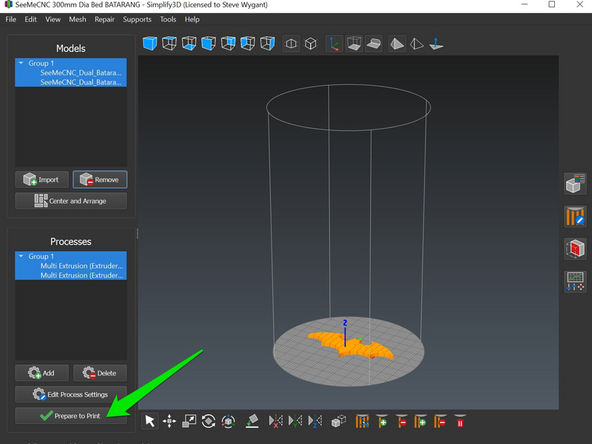

  3. Click "Prepare to Print" on the lower left
    • Click "Prepare to Print" on the lower left

    • Note that multi-color prints have both models arranged on the print bed. Then in the menu bar, choose "Tools > Multi Extrusion Wizard". In this example, this has already been done in the example file downloaded.

  4. The slider along the bottom is used to inspect the layers of the  print.
    • The slider along the bottom is used to inspect the layers of the print.

    • Save the gcode file by clicking on the button on the lower left "Export Build File to Disk"

    • The model is now ready to print.

    • Note: The view of the multi-color print can be changed by selecting the "coloring" drop down located on the left side near the middle. The software only allows automatic coloring.

    • Remember if changes are made to the "Process Settings, save them by clicking "Update Profile" by the Profile Name.

Finish Line

SeeMeCNC

Member since: 10/04/2016

562,208 Reputation

16 Guides authored

One Comment

Hi, I followed the instructions but when I load the downloaded factory file I get a rectangular printer.

Please advise, my printer is a BOSSdelta 300. Thank you!

Razvan - Reply
