This animation highlight the assembly / installation of the EZR Struder.
-
Your EZR Struder will come nearly fully assembled from SeeMeCNC.
-
Attach the EZR Struder assembly to your NEMA 17 stepper motor using the provided M3x10mm screws
-

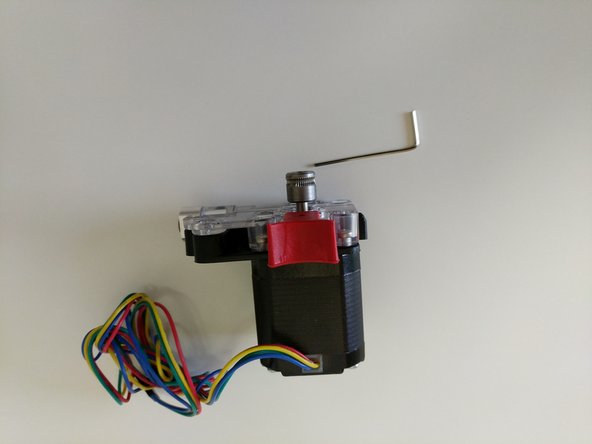

Install and securely fasten the Direct Drive Roller (Hobbed Gear) on to the stepper motor shaft. The set screw should be aligned and tightened onto the flat of the stepper motor shaft. (for those previously using the EZStruder, you will need to flip your Direct Drive Roller (Hobbed Gear) 180 degrees.
-
Attach the EZRStruder to your machine (the mounting holes pattern is the same as the EZStruder).
-
-
-
Locate the EZR Struder pack from your kit or order.
-
If you are assembling a printer kit, you will also need to locate the bank of stepper motor packaged in bubble wrap.
-
If you are upgrading your extruder on a machine you will need to remove the old extruder from the stepper motor.
-
-
-
The main bodies of the EZR Struder have been zip tied together so they stay together during shipping. You will need to cut that zip tie and remove it.
-
Keep the EZR Struder assembled
-
-
-
The orientation of the EZR Struder with the stepper motor is different for different machines.
-
The image with the red arrows shows the correct oriantaiton when installing the EZR Struder on the H2.
-
The image with the blue arrows shows the correct oriantaiton when installing the EZR Struder on the Rostock Max v3.
-
-
-

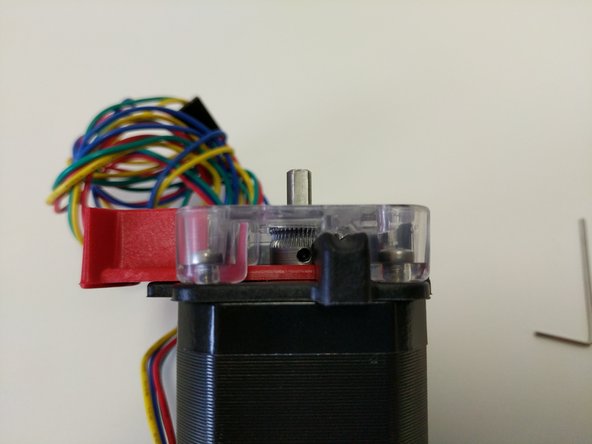

You will be attaching the EZR Struder to the stepper motor using (4) M3 x 10mm screws in the locations indictaed by blue arrows.
-
Fully tighten the screws
-
-
-
H
-
-
-
H
-
-
-
J
-
